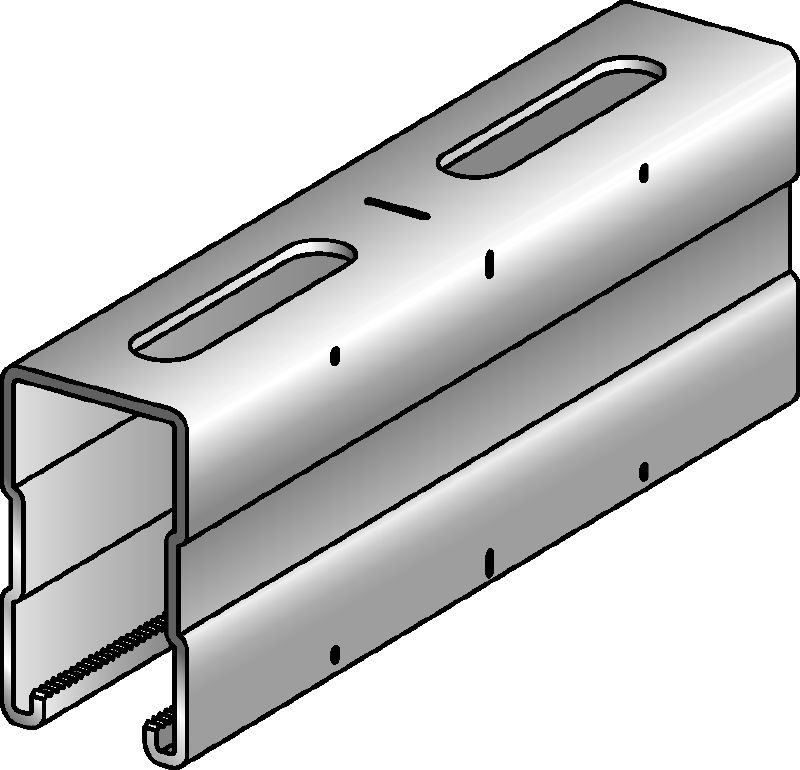

MQ-72-F channel
New productItem #r4348
Hot-dip galvanised (HDG) 72 mm high MQ strut channel for medium/heavy-duty applications
- Height: 72 mm
- Material thickness: 2.75 mm
- Material composition: S235JR - DIN EN 10025
Features & Applications
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimised hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for use in moist interiors, on exteriors exposed to slight or no weathering and on back-ventilated facades
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
