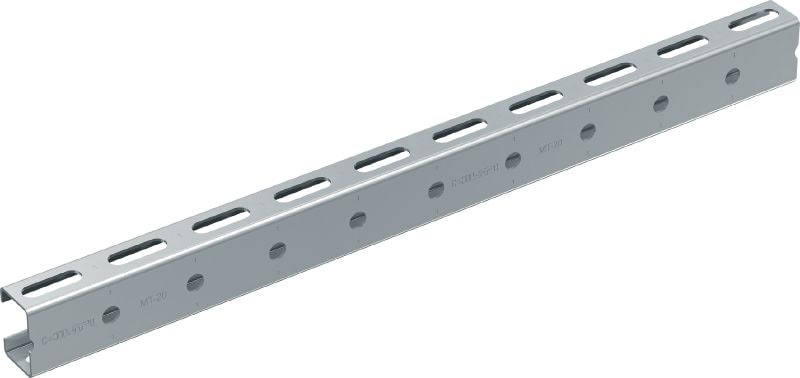

MT-20 Profile
New productItem #r12218932
Light-duty profile channel for trapezes, for indoor use
- Material composition: S280 or better steel
- Surface finish: Indoor Coated - Pre-galvanised
- Material thickness: 1.75 mm
Features & Applications
Features & Applications
Features
- Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
- Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
- Economical solution for simple threaded rod trapeze frames
- Fully compatible with the MT System – direct mounting on MT girders possible
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
Applications

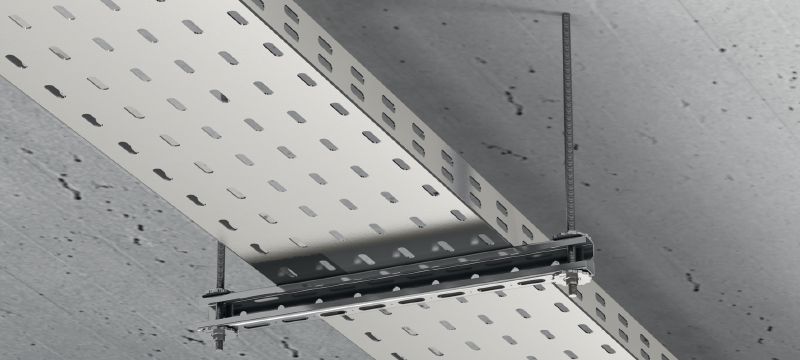

- Strut trapeze to support pipes, ducts and cable trays
- Suitable for use in dry, indoor environments
