PS 300 Ferroscan system
New productItem #r9374764
Concrete detector for rebar localisation, depth measurement and size estimation in structural analysis
- Max. detection depth for object localization: 200 mm
- Localisation accuracy: 1% +/-3mm mm
- Minimum distance between two neighbouring objects: 30 mm
Features & Applications
Features & Applications
Features

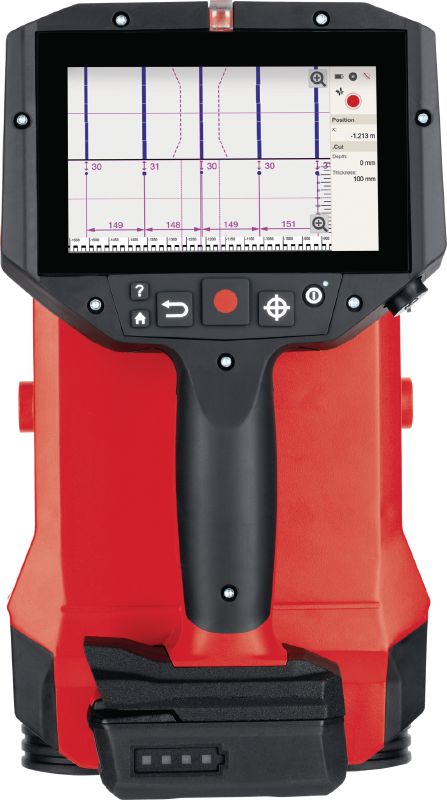

- Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
- Smart algorithm helps accurate depth measurements for rebar

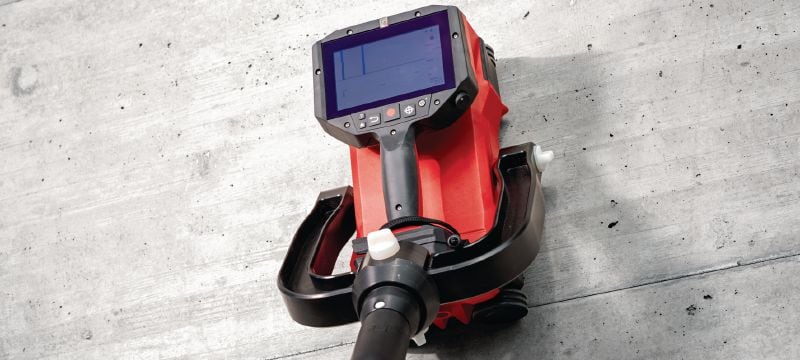

- Wide sensor area enables quick and easy scan over large areas
- Record scan data for documentation and structural analysis
Applications

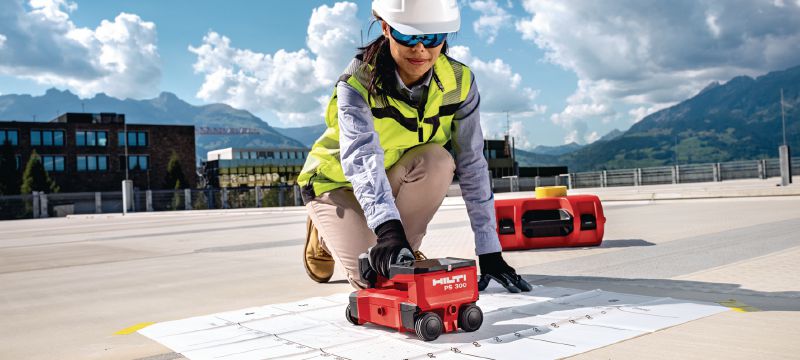

- Verification and analysis for 1st layer rebar

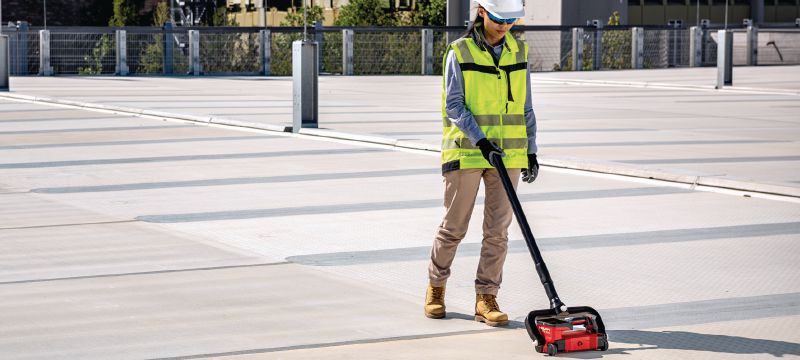

- Checking concrete cover over large areas for structural repair work
- Building acceptance inspections and quality control

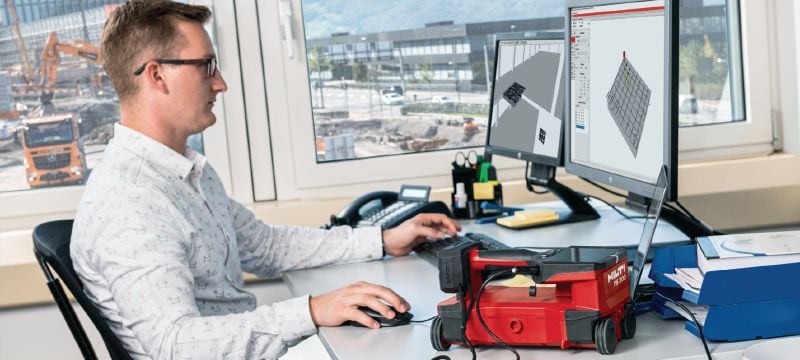

- Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas
