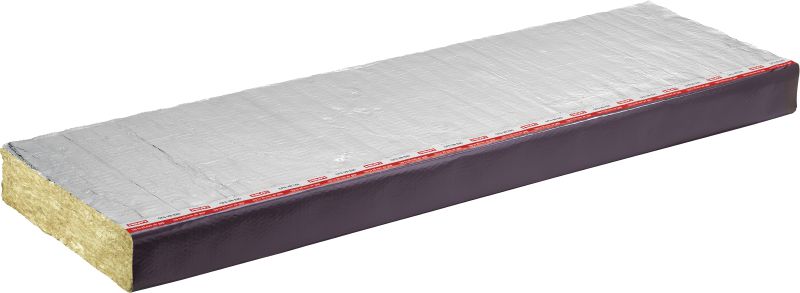

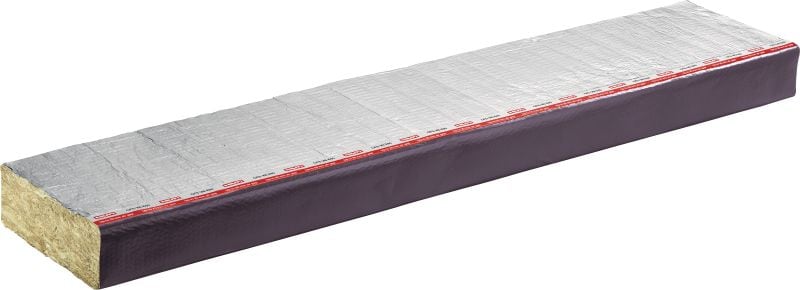

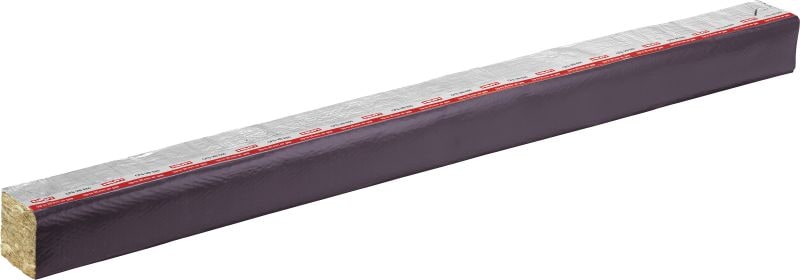

CFS-VB E60 Cavity barrier 25mm air gap
New productItem #r21707845
Pre-formed fire cavity barrier for rainscreen cladding with 60 minutes of fire integrity and air gaps up to 25 mm
- Length: 1200 mm
- Height: 80 mm
- Density: 80 kg/m³
Features & Applications
Features & Applications
Features

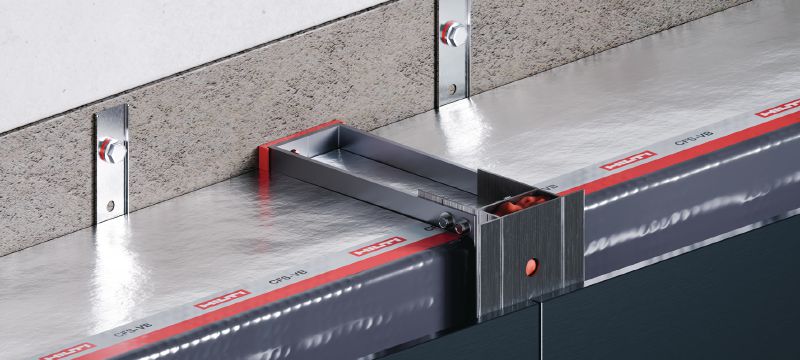

- Faster installations – new push-to-fit bracket system eliminates bending, cutting, and trimming, so you can install up to 40% faster than standard brackets
- Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
- Extensive test evidence – tested and approved for a wide variety of specialty applications
- Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for rainscreen cladding
- Direct fastening tested – combine with our range of direct fastening solutions for even faster installations
Applications

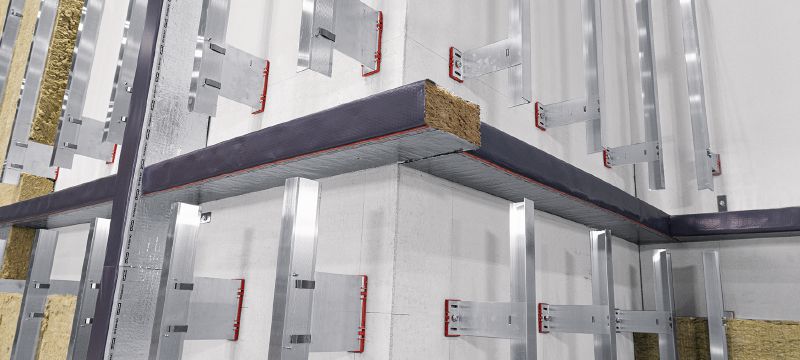

- Sealing building envelope cavities to better prevent the spread of fire via the façade

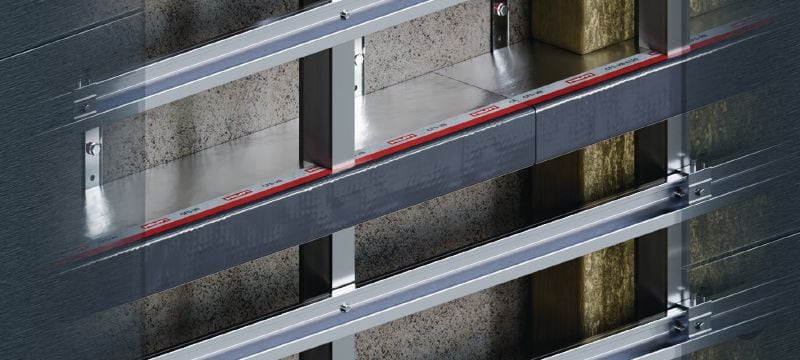

- Firestopping ventilated rainscreen cladding while leaving an air gap of up to 25mm
- Verified fire resistance for 60 minutes integrity and 30 minutes insulation according to ASFP TGD19
For approval or certificate information, please see individual items.
