S-BT MF Screw-in stud
New product UltimateItem #r6194084

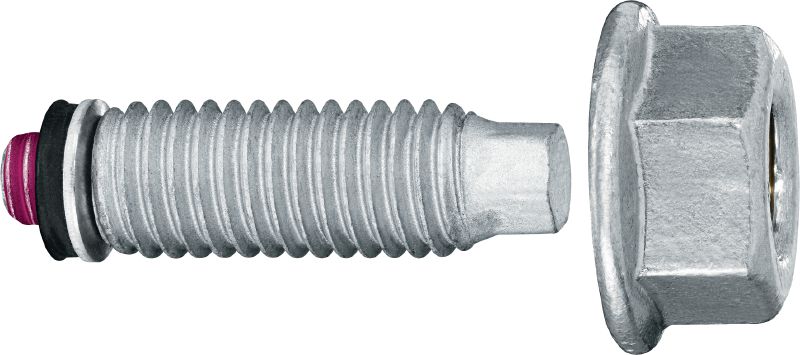

Threaded screw-in stud (carbon steel, Metric or Whitworth thread) for multi-purpose fastenings on steel in mildly corrosive environments
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Duplex coating, equivalent to 45 µm hot-dip galvanised
Customers also searched for Stainless stud nails, Multi-fastening studs, Stainless stud fasteners, Blunt tip screw studs or Composite studs
- The S-BT MF is easier and more reliable – no electric supply cords or heavy equipment needed for installation
- Suitable for use in mildly corrosive environments (C3) on coated steel
- Easy installation in tight spaces
- No rework on coated steel
- Compatible with Hilti MQ and MC installation channels
- General fastenings on steel structure with a thickness of 6 mm (1/4") and greater
- Fastening cable ladders using channels or hold-down/expansion guide clips

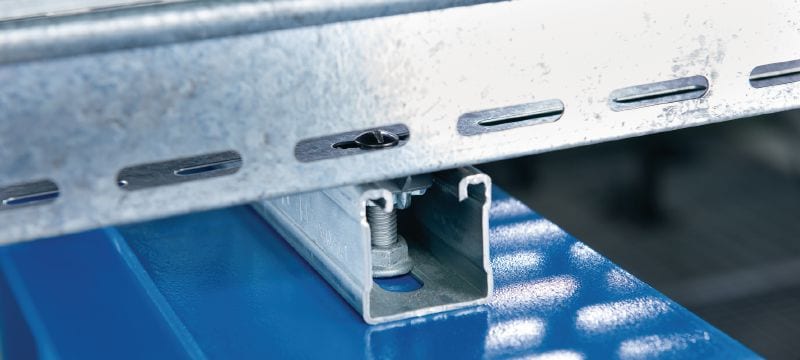

- Fastening cable trays and cable runs using channels or conduit clips

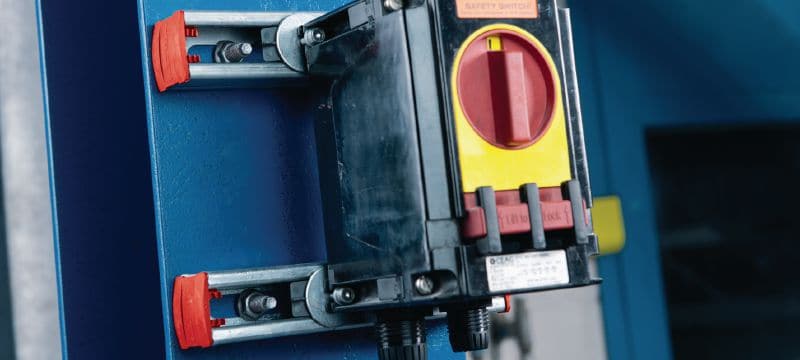

- Fastening junction boxes, switchgear and instrumentation panels directly or using channels
- Fastening lighting fixtures, signage etc.
Product Variants & Sets
Technical Data
Documents
-
- ETA-20/0530_S-BT_2020.09.18_en, English, German, [ 3.3 MB ]
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English, [ 1.7 MB ]
- BV Type Approval 45116/A2_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R, X-FCM-M and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 535 kB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
Application videos
-
S-BT fastening system - Fast. Simple. Reliable.
Support and maintenance videos
-
S-BT-MF - Multipurpose fastening installation guide.
