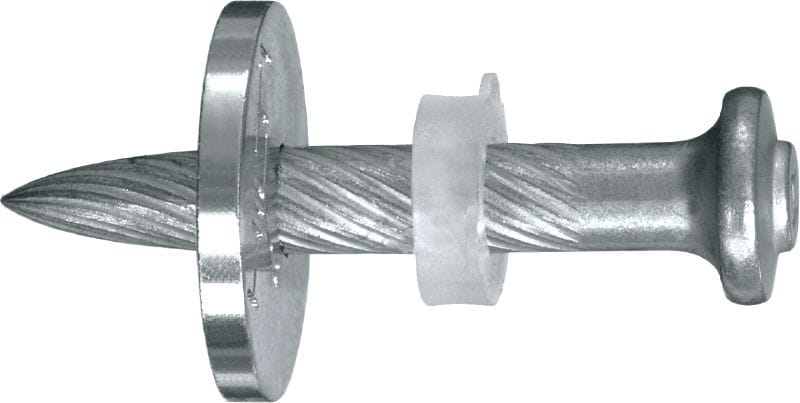

X-U P8 S steel/masonry nails with washer
New product PremiumItem #r3650
High-performance single nail with steel washer for fastening to concrete and steel using powder-actuated tools
- Base materials: Concrete, Steel
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
Customers also searched for drywall track, direct fastening, nails for direct fasening, nails or concrete nails
Features
- Galvanised nails for fastenings on concrete or steel
- Higher application limits, higher ultimate tensile loads
- With preassembled washer providing increased pull-over values
- Knurled point for better performance on high-strength steel and hard concrete
Applications
- Fastening on steel support frames S 355 (St 52) 6-12 mm
- Fastening steel sheets on steel support frames or substructures S 355 (St 52) 6-8 mm
- Fastening wood on S 355 (St 52) steel substructures with a thickness of 6 mm
- Fastening timber or steel brackets to steel or concrete where high pull-over strength is required
- Fastening wood to concrete (even high-strength concrete) or steel
For approval or certificate information, please see individual items.
Product Variants & Sets
Technical Data
Documents
-
- ABS Approval 21-2146146-PDA for carbon steel powder-actuated fasteners, English, [ 111.3 kB ]
- DNV-GL Approval TAS00002UR for X-U and EDS powder-actuated fasteners, English, [ 189 kB ]
- ETA-16/0082 for X-U16 S12 sheet metal fastener, English, German, [ 988.8 kB ]
- LR Approval 97/00077(E3) for carbon steel powder-actuated fasteners, English, [ 1 MB ]
- ICC ESR-2269 for X-U Universal Knurled Shank Fasteners, English, [ 786.6 kB ]
