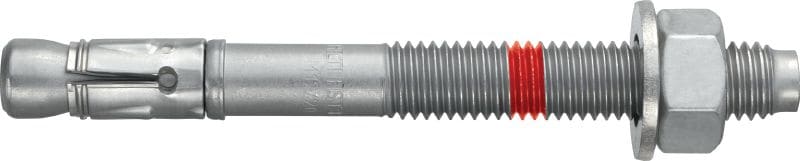

HST3-R Wedge anchor

Item #r3987999

Ultimate-performance expansion anchor for cracked concrete under static and seismic conditions (A4 SS)

Material, corrosion: Stainless steel, A4
Head configuration: Externally threaded
Approvals / test reports: ETA, Fire, FM (Factory Mutual), Seismic

More technical data

Customers also searched for anchoring in uncracked concrete, anchoring, anchoring in cracked concrete, anchors or expansion anchor

Features & Applications

Features

High resistance – to meet geometrically challenging requirements, e.g. reduced member thickness or smallest spacing and edge distances
Increased undercut percentage in combination with optimized coating
Greater flexibility thanks to two embedment depths included in the ETA
Minimum edge and spacing distances reduced by up to 25% compared to HST expansion anchors

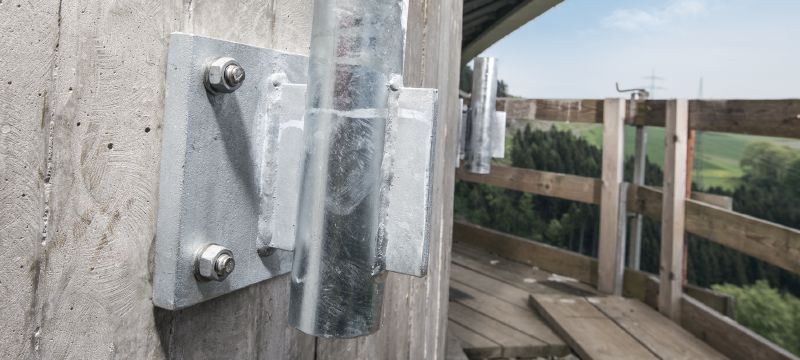

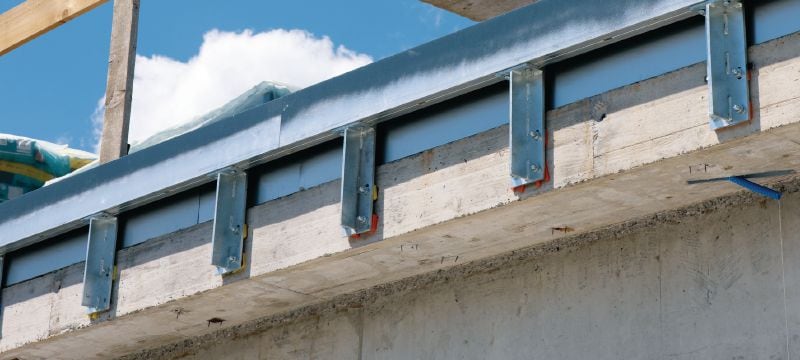

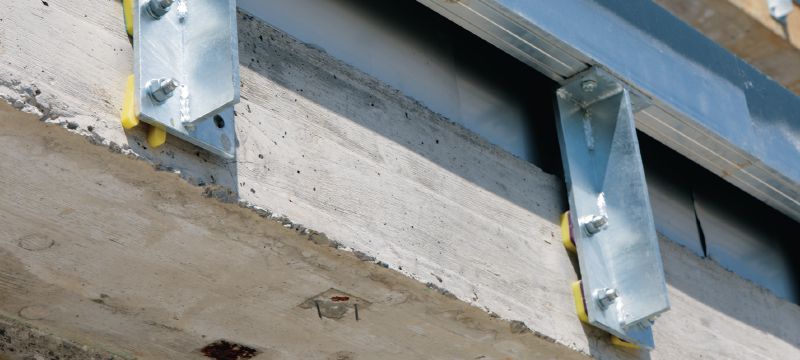

Applications

Particularly suited to safety-relevant applications in corrosive environments
All safety-relevant fastenings in cracked and uncracked concrete
All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements
Handrails
