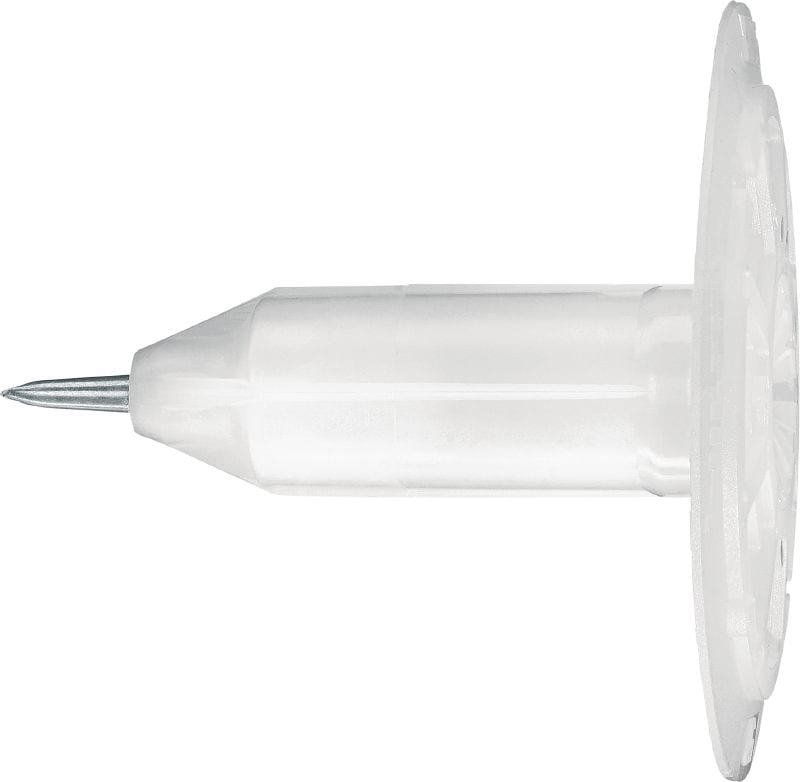

X-IE-G 6 Insulation fastener
New product
Premium
Item #r7618241
Insulation fasteners pre-mounted with X-P G2 high-performance nails for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards, to soft concrete and to masonry
- Application: Rigid Board Insulation, Mineral Wool Insulation
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
- Base materials: Concrete (soft)
Features & Applications
Features & Applications
Features
- Quick and easy fastening method for insulation applications – up to five times faster than conventional methods
- Suitable for 25-200 mm thick insulation
- Fastener tip designed to improve fastening quality and ease penetration into insulation material
- No holes in the fastener shank – helping prevent mold and moisture penetration in the insulation material (applies to fastener lengths from 40-200 mm)

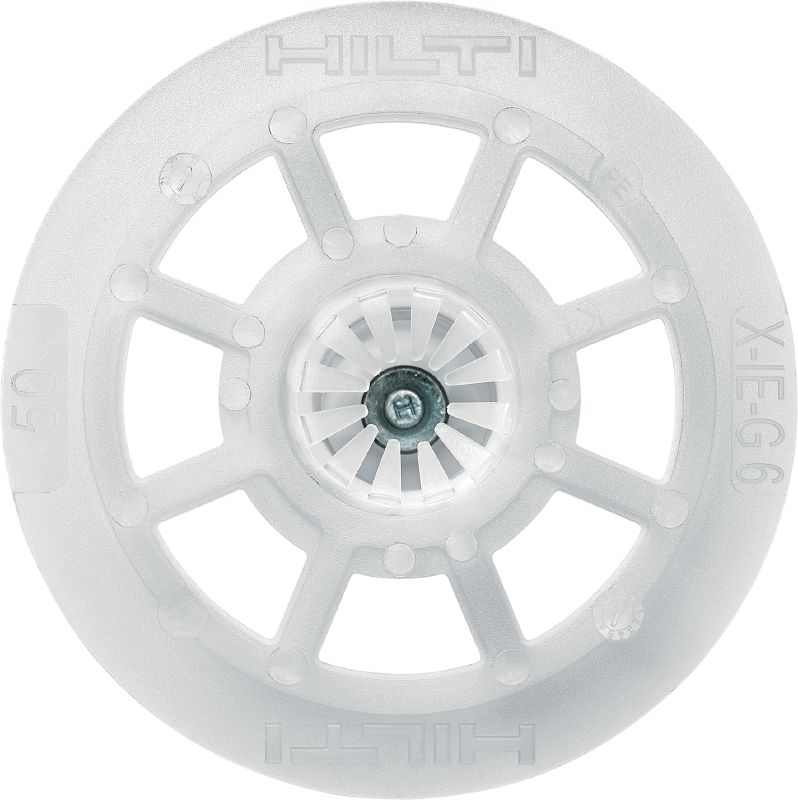

- Unique "fin" self-sealing design on the plate – allowing one-step fastening
Applications
- One system for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fibre-cement faced boards to soft concrete and to masonry
- Fastening insulation material to walls and ceilings
- Fastening insulation material in light-ventilated façade application (LVF)
- Fastening insulation material to the bottom of concrete slab (ceiling)
- Fastening basement perimeter wall insulation (foundation wall)
