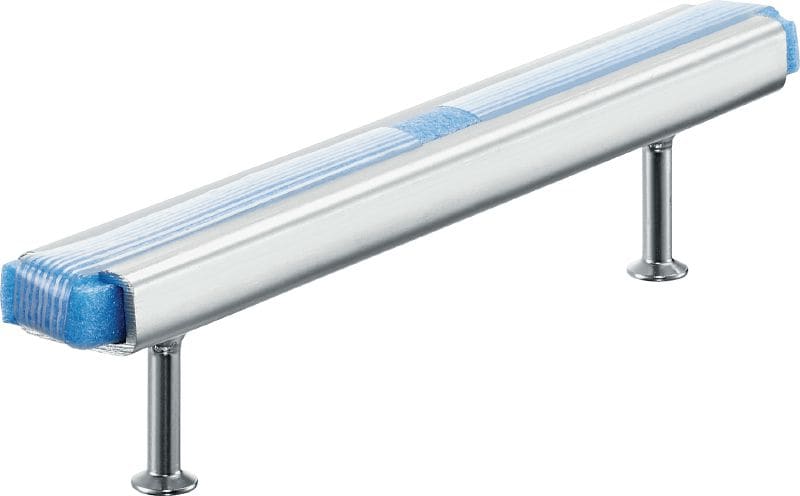

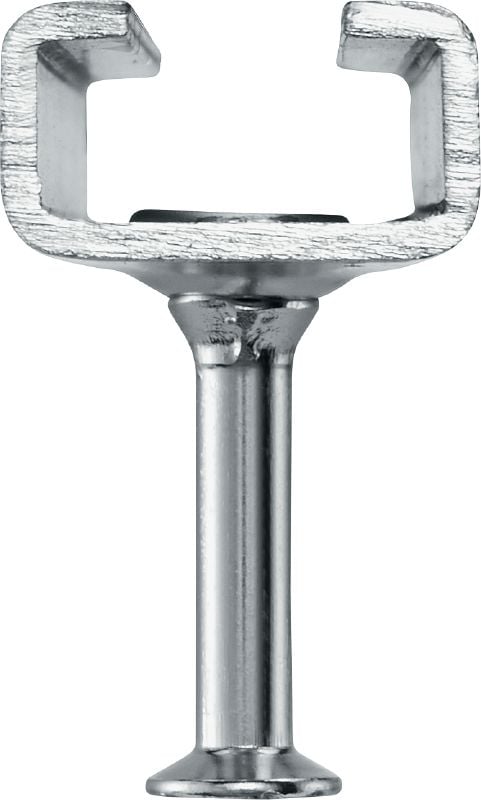

HAC-C Cold-formed anchor channel
New productItem #r9197054
Cold-formed cast-in anchor channels in standard sizes and lengths for everyday applications
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4

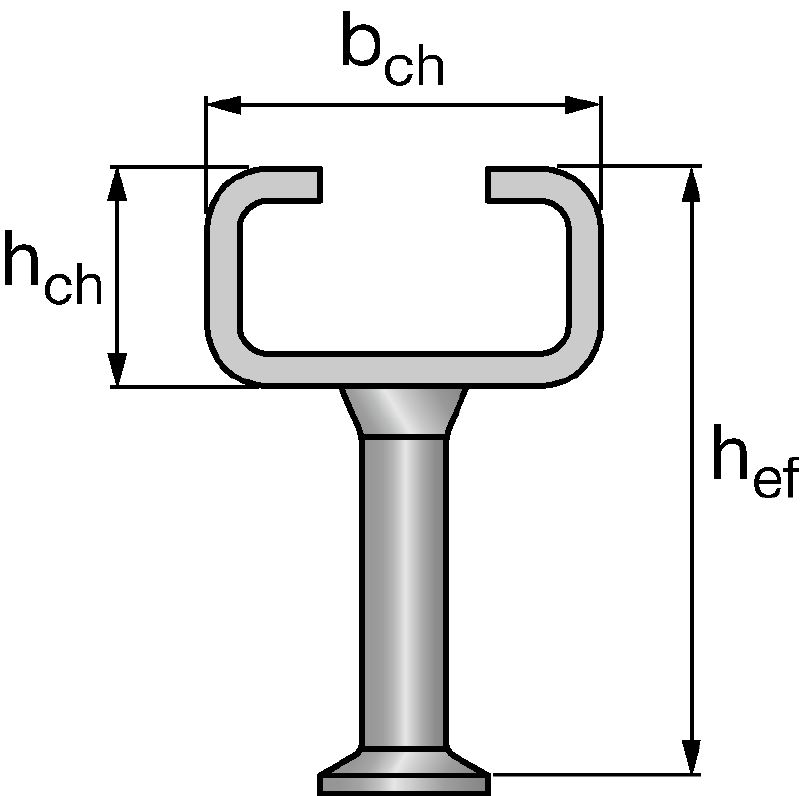

- Channel profile: HAC-C 28/15, HAC-C 38/17, HAC-C 40/25, HAC-C 49/30, HAC-C 54/33
- PROFIS software: Yes
Features & Applications
Features & Applications
Features
- Cold-formed, rounded profiles with constant material thickness – ensuring uniform load capacity
- Versatile solution – engineered for everyday applications
- LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
- ETA and fire approval documents available
- Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions
Applications
- Building appliances (e.g. ventilation, heating)
- Stadium seating
- Precast components
For approval or certificate information, please see individual items.
