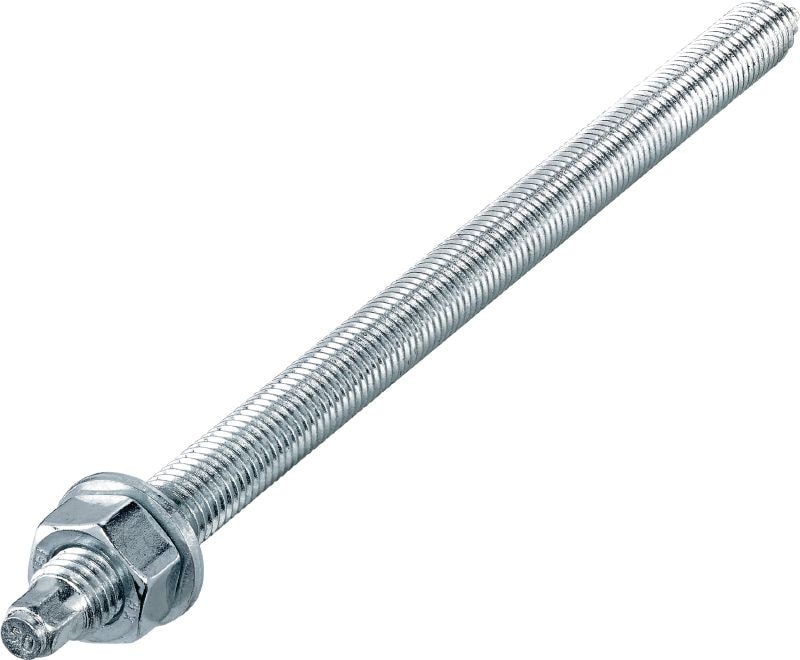

HAS-U 8.8 Anchor rod
New productItem #r9864251
High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (8.8 carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Useable thread length: 194 mm
- Drill bit diameter: 14 mm
Features
- Head marking for easy verification of steel grade and rod length, even after installation
- Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
- Replaces previous HIT-V & HAS / HAS-E rods
- Large range of anchor rod diameters (M6-M39)
- Custom lengths and additional diameters up to M39 available upon request
Applications

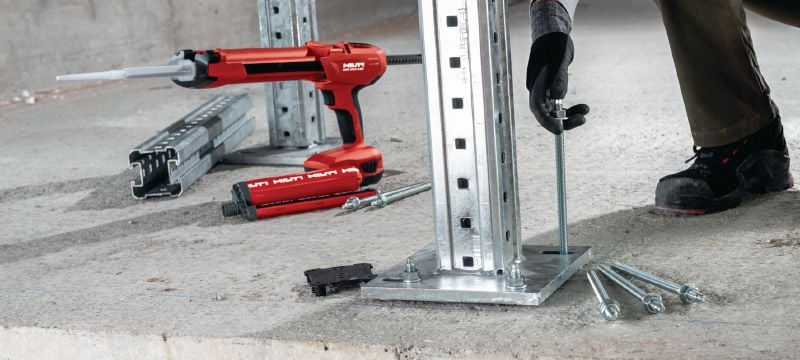

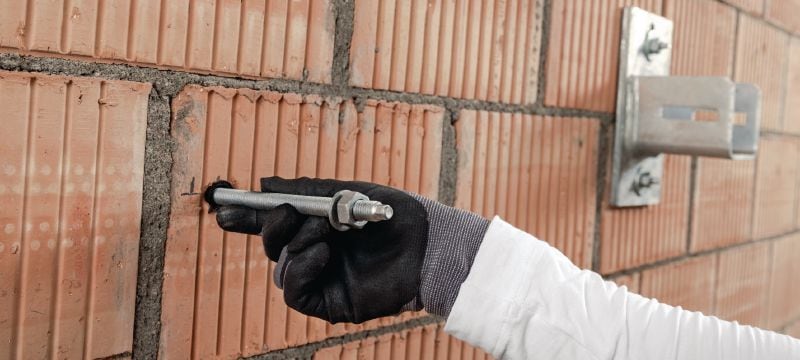

- Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems
For approval or certificate information, please see individual items.
Product Variants & Sets
Technical Data
Documents
-
- ETA-12/0084_HIT-HY-200-R_Anchor_EC2&TR055_50years_082019, English, German, [ 3.4 MB ]
- ETA 11/0354 for HIT-CT 1 injection mortar for anchoring applications, English, [ 868.2 kB ]
- ETA-11/0493_HIT-HY 200-A_Anchor_EC2&TR055_50&100years_122020, English, German, Polish, [ 7 MB ]
- ETA-20/0697 HCC-U, English, German, French, [ 14.9 MB ]
- ETA_16/0515_HVU2_capsule_022023, English, German, Polish, [ 5.6 MB ]
- ETA 19/0161 for HIT-HY 170, English, German, Polish, [ 18.1 MB ]
- ETA 19/0160 for injection mortar HIT-HY 270, English, German, Polish, [ 9.2 MB ]
- ETA 19/0465 for injection mortar HIT-HY 170, English, German, Polish, [ 6.6 MB ]
- ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, German, Polish, French, [ 8.9 MB ]
- ETA-19/0601 HIT-HY 200-A/R V3 Anchoring Jun-2023, English, German, Polish, [ 21.5 MB ]
-
- Technical data sheet for Hilti HIT-HY 170 injectable mortar for anchors in concrete and masonry, English, [ 859.3 kB ]
- Tech_HIT-HY 200-R V3_2023_en, English, [ 3.6 MB ]
- Technical data sheet for Hilti HIT-HY-200 injectable mortar in concrete, English, [ 3.8 MB ]
- Technical data sheet for HIT-RE 500 V3 injectable mortar in concrete., English, [ 3 MB ]
